Product Description

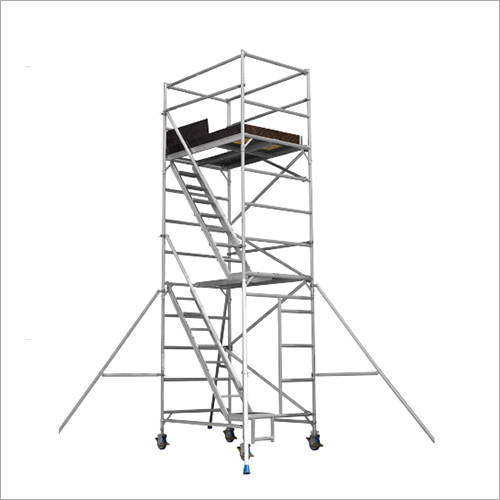

The platform of this Aluminum Mobile Stairway Scaffolding can endure maximum 225 kg load and the entire structure of this scaffolding can withstand up to 750 kg tower weight. The advanced design of its platform ensures safely of laborers. The non slippery steps and durable handrails of this aluminum item enables workers to access its base to top sans any trouble. The sizable trap door of its platform is meant for hassle free access to work area. Convenient to assemble and dissemble, this scaffolding product enables workers to perform multiple works simultaneously. We are an eminent manufacturer of standard grade Aluminum Mobile Stairway Scaffolding.
Features
- Protected landing with a stage
- Safe working load of over 225/stage level up to the optimum of 750 kgs for every tower
- Simple stroll from the bottom to the top dimension
- Furnished staircase with non-slip handrail and step
- The stage offered with an extensive device entryway for simple access to working zone
- Simple dismantling and erection
- Operation on various dimensions in the meantime (every 2mtr)
Item Code : AMSS
- Load rating : 225 kg per platform
- Safe working load : 750 kg per tower
- Base width : 1.40 Meter
- Base length : 2.0 Meter
ALUMINIUM STAIRWAY SCAFFOLDING 1.4m WIDTH x 2.0m LENGTH
SAFE WORKING LOAD 225KG PER PLATFORM
SPECIFICATION
| TOWER CODE | AMSW 4 | AMSW 6 | AMSW 8 | AMSW 10 | AMSW 12 | AMSW 14 | AMSW 16 |
| TOWER HEIGHT | 3.8M | 5.8M | 7.8M | 9.8M | 11.8M | 13.8M | 15.8M |
| MAXIMUM PLATFORM HEIGHT | 2.5M | 4.5M | 6.5M | 8.6M | 10.5M | 12.5M | 14.5M |
| WORKING HEIGHT | 4.5M | 6.5M | 8.5M | 10.5M | 12.5M | 14.5M | 16.5M |
ACCESSORIES
| TOWER CODE | AMSW 4 | AMSW 6 | AMSW 8 | AMSW 10 | AMSW 12 | AMSW 14 | AMSW 16 |
| WALK THROUGH FRAME | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| SPAN FRAME | 1 | 3 | 5 | 7 | 9 | 11 | 13 |
| GUARD RAIL 1.5M | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| STAIRCASE ONESIDE LANDING | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| HORIZONTAL BRACE | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| DIAGONAL BRACE | 3 | 5 | 7 | 9 | 11 | 13 | 15 |
| HANDRAIL | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| STABILIZER 3M | 0 | 4 | 0 | 0 | 0 | 0 | 0 |
| STABILIZER 4.5M | 0 | 0 | 4 | 4 | 0 | 0 | 0 |
| STABILIZER 6M | 0 | 0 | 0 | 0 | 4 | 4 | 4 |
| CASTER WHEEL 8 INCH WITH JACK | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| PLATFORM TRAPDOOR | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| PLATFORM FIX | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
