Product Description

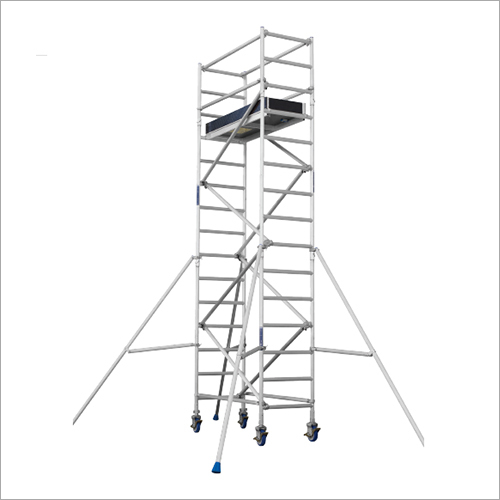

This Aluminum Mobile Narrow Scaffolding (Single Width) is suitable for limited space utilization purpose. The six rung structures of its frame and in built ladder system of this portable scaffolding are incorporated into its design as per client’s requirements. Featured with maximum 225 kg load bearing capacity, its platform promotes accomplishment of different works simultaneously. The height of this product can be extended up to 12 mtr. Chrome plated structure, dual breaking function of caster wheels, light weight nature and trouble free installation and removal methods are its key features. We are a reliable manufacturer of Aluminum Mobile Narrow Scaffolding (Single Width).
Aluminium Mobile Narrow Scaffolding Technical Details
- Load Rating : 225 Kg Per Platform
- Total Load Capacity : 700 Kg Per Tower
- Base Width : 0.80 Meter
- Base Length : 1.8 Meter
- Load Capacity : 225 Kg Per Platform
- 700 Kg Per Tower
Features of Aluminium Mobile Narrow Scaffolding
- Single width platforms are utilized where the area has restriction
- Both inherent stepping stool and 6 rung outlines are given that relies upon the clients’ necessity
- Safe operation load each stage is 225 kg
- The caster has double breaking framework while the structure is chrome covered
- Staggered operations are conceivable at once
- According to the safety gauges, the optimum tallness for this kind of frameworks is 12 meter
Specification of Aluminium Mobile Narrow Scaffolding
| TOWER CODE | - | AMNS 2 | AMNS 3 | AMWS 4 | AMNS 5 | AMNS 6 | AMNS 7 | AMNS 8 | AMNS 9 | AMNS 10 | AMNS 11 | AMNS 12 |
| TOWER HEIGHT | - | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0M | 11.0M | 12.0M |
| PLATFORM HEIGHT | - | 1.0 M | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0M | 11.0M |
| WORKING HEIGHT | - | 3.0 M | 4.0 M | 5.0M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0M | 11.0M | 12.0M | 13.0M |
ACCESSORIES
| TOWER CODE | - | AMNS 2 | AMNS 3 | AMWS 4 | AMNS 5 | AMNS 6 | AMNS 7 | AMNS 8 | AMNS 9 | AMNS 10 | AMNS 11 | AMNS 12 |
| SPAN FRAME | 2.0 M | 2 | 2 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 |
| GUARD RAIL | 1.0 M | 0 | 2 | 0 | 2 | 0 | 2 | 0 | 2 | 0 | 2 | 0 |
| H-BRACE | 2.0M | 4 | 6 | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 12 |
| D-BRACE | 2.2M | 2 | 2 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| STABILIZER | 2M | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| STABILIZER | 3M | 0 | 0 | 0 | 4 | 4 | 4 | 0 | 0 | 0 | 0 | 0 |
| STABILIZER | 4.5 M | 0 | 0 | 0 | 0 | 0 | 0 | 4 | 4 | 4 | 4 | 0 |
| STABILIZER | 6M | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 |
| CASTER WHEEL | 6” | 4 | 4 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
ACCESSORIES ADVISABLE FOR MORE SAFETY
| TOWER CODE | - | AMNS 2 | AMNS 3 | AMWS 4 | AMNS 5 | AMNS 6 | AMNS 7 | AMNS 8 | AMNS 9 | AMNS 10 | AMNS 11 | AMNS 12 |
| TOE BOARD | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| PLATFORM TRAPDOOR | - | 0 | 0 | 0 | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 4 |
| STABILIZER | 2M | 0 | 4 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
